Brazil 2012 Fieldwork Diary Entry 2: The Puzzling Question of Therapsid Origins

Ken Angielczyk, MacArthur Curator of Paleomammalogy and Section Head, Negaunee Integrative Research Center

Ancient synapsids are interesting for many reasons, but we hope our fieldwork this year in Brazil will help to address a particular problem in synapsid evolution. The oldest synapsids are found in parts of North America and western Europe, and these areas were located in a narrow band near the equator at the time these animals were alive (about 300 million years ago, in the Carboniferous Period of Earth history).

Skull of the therapsid Lycaenops on display at The Field Museum. Photo by Ken Angielczyk.

Ancient synapsids are interesting for many reasons, but we hope our fieldwork this year in Brazil will help to address a particular problem in synapsid evolution. The oldest synapsids are found in parts of North America and western Europe, and these areas were located in a narrow band near the equator at the time these animals were alive (about 300 million years ago, in the Carboniferous Period of Earth history). The synapsid fossil record in these areas continues up to about the end of the Early Permian Period (roughly 275 million years ago), and although a number of synapsid species are present, they are mostly members of early lineages (colloquially known as pelycosaurs) with rather lizard-like body plans. To continue to trace synapsid history after this time, we need to look at the fossil record preserved in younger rocks in other geographic areas, traditionally South Africa and European Russia.

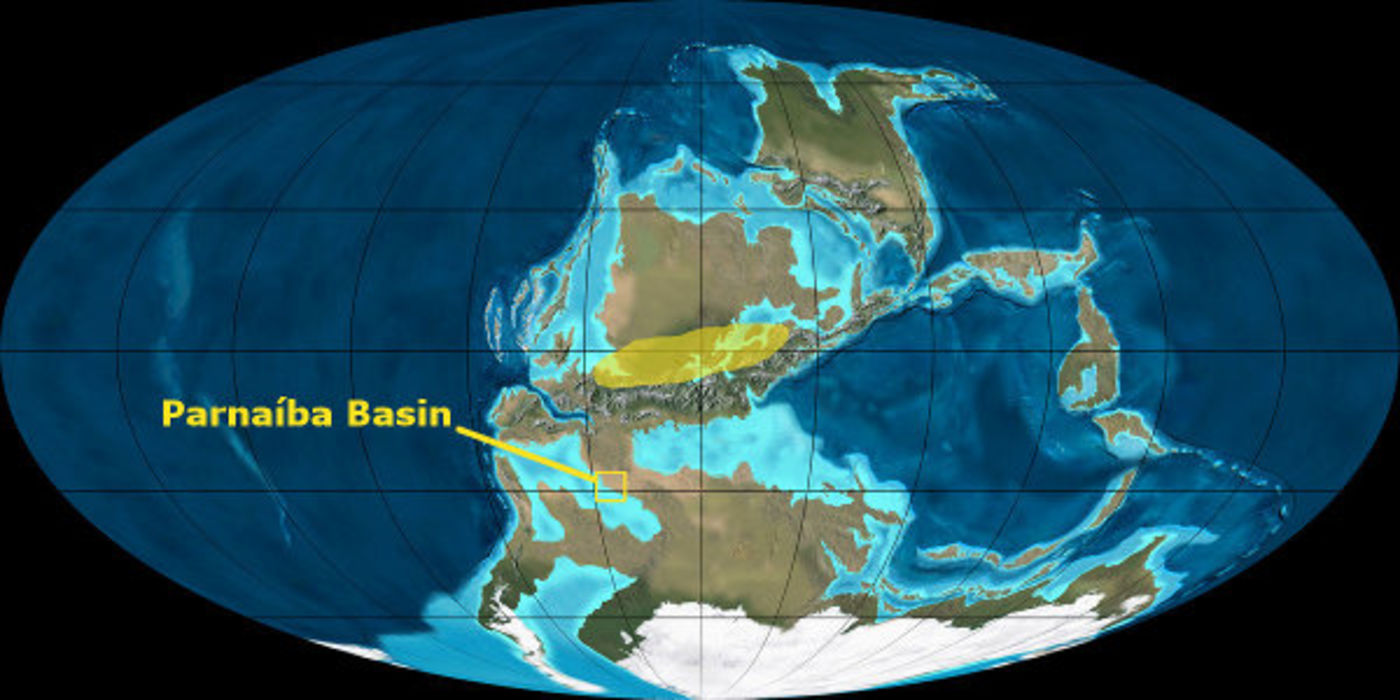

Paleogeographic map showing the reconstructed positions of the continents in the Late Carboniferous Period of Earth history (approximately 300 million years ago). All synapsid fossils known from this time have been found in the narrow belt near the equator that is highlighted in yellow. The yellow box shows the approximate position of the Parnaíba Basin at this time. Base map courtesy of Ron Blakey, Colorado Plateau Geosystems, Inc.

Both of these areas were located at relatively high latitudes at the time and, with a few exceptions, the synapsid fossils found in the rocks in these areas are different than the ones from North America and western Europe: they tend to be more closely related to mammals and they begin to take on a more mammal-like appearance. Likewise, although the South African and Russian synapsids clearly are related to the older synapsids found in North America and western Europe, they don't seem to have direct ancestors in the latter areas. Thus, there is information missing from the known fossil record about the origin of these younger synapsids.

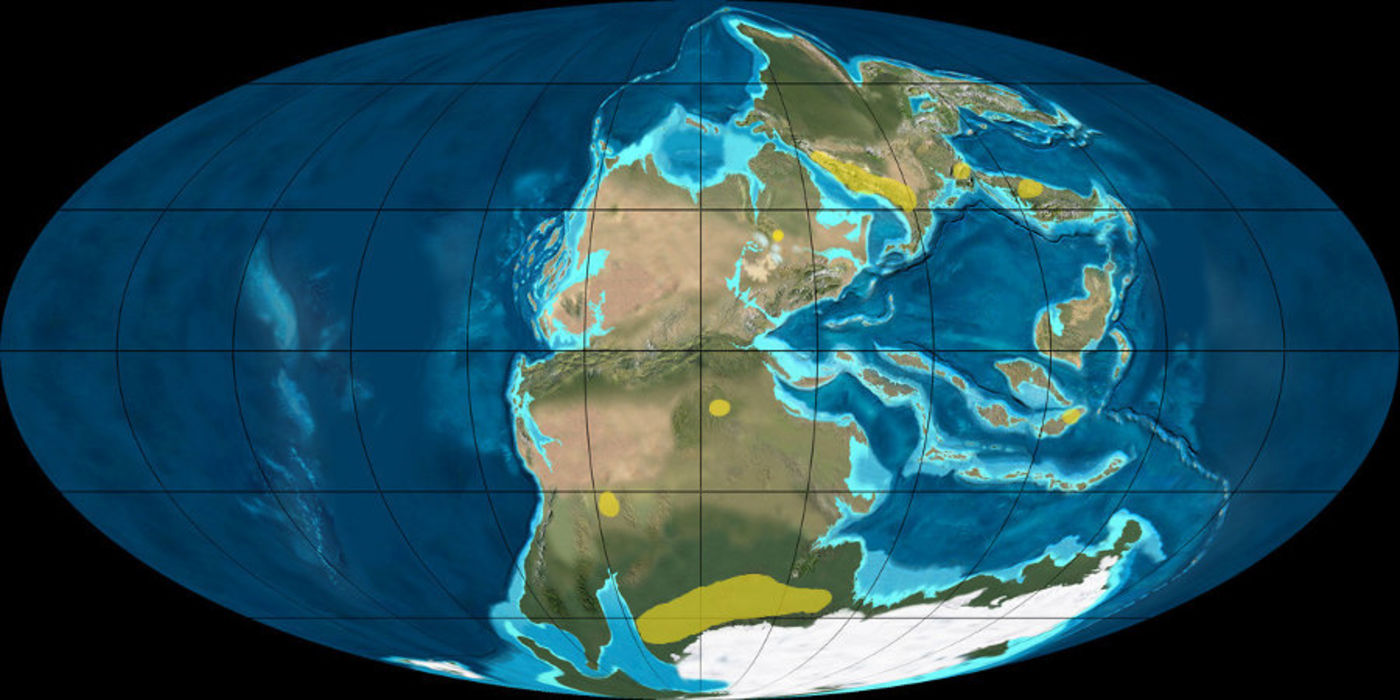

Paleogeographic map showing the reconstructed positions of the continents in the Late Permian Period of Earth history (approximately 255 million years ago) Areas where therapsid fossils have been found are highlighted in yellow; the richest and most studied deposits are in southern Africa and Russia. Base map courtesy of Ron Blakey, Colorado Plateau Geosystems, Inc.

There have been a number of hypotheses presented by paleontologists about the cause of this missing information. One common explanation is that there is a time gap of several million years between the rocks in North America and Europe on the one hand, and those in South Africa and Russia on the other. Under this scenario, the earliest therapsids must have evolved and dispersed to high latitude areas during the missing time. However, the time gap has been steadily shrinking as our age estimates for the rocks in the different areas become more refined, so missing time is at best an incomplete explanation. An alternative is that therapsid ancestors have been found in North America and/or Europe, but have not been recognized as such. For example, the late paleontologist Everett Olson suggested that a number of fossils from North America represent early members of therapsid groups, but more recent scrutiny of the fossils suggests that they represent pelycosaurs instead. A third explanation is that the origin of therapsids occurred in a different geographic area, one that either does not preserve rocks with fossils from this time or that has a fossil record that has not been thoroughly studied. The recent discovery of the very early therapsid Raranimus in China suggests that incomplete geographic sampling may indeed be an important factor contributing to the uncertainty surrounding the early history of therapsids. If that's the case, then it is necessary to explore fossiliferous rocks of approximately the right age in new geographic areas to see if we can find evidence of early therapsids.

As we'll see, the rocks preserved in the Parnaíba Basin of northeastern Brazil appear to be the right age to preserve early therapsid fossils. The area also was ideally located to catch early therapsids or their ancestors if they were dispersing from equatorial North America to southern Africa. So any synapsid fossils we might find during the course of our fieldwork could be very important!


Ken Angielczyk
MacArthur Curator of Paleomammalogy and Section Head

I am a paleobiologist interested in three main topics: 1) understanding the broad implications of the paleobiology and paleoecology of extinct terrestrial vertebrates, particularly in relation to large scale problems such as the evolution of herbivory and the nature of the end-Permian mass extinction; 2) using quantitative methods to document and interpret morphological evolution in fossil and extant vertebrates; and 3) tropic network-based approaches to paleoecology. To address these problems, I integrate data from a variety of biological and geological disciplines including biostratigraphy, anatomy, phylogenetic systematics and comparative methods, functional morphology, geometric morphometrics, and paleoecology.

A list of my publications can be found here.

More information on some of my research projects and other topics can be found on the fossil non-mammalian synapsid page.

Most of my research in vertebrate paleobiology focuses on anomodont therapsids, an extinct clade of non-mammalian synapsids ("mammal-like reptiles") that was one of the most diverse and successful groups of Permian and Triassic herbivores. Much of my dissertation research concentrated on reconstructing a detailed morphology-based phylogeny for Permian members of the clade, as well as using this as a framework for studying anomodont biogeography, the evolution of the group's distinctive feeding system, and anomodont-based biostratigraphic schemes. My more recent research on the group includes: species-level taxonomy of taxa such as Dicynodon, Dicynodontoides, Diictodon, Oudenodon, and Tropidostoma; development of a higher-level taxonomy for anomodonts; testing whether anomodonts show morphological changes consistent with the hypothesis that end-Permian terrestrial vertebrate extinctions were caused by a rapid decline in atmospheric oxygen levels; descriptions of new or poorly-known anomodonts from Antarctica, Tanzania, and South Africa; and examination of the implications of high growth rates in anomodonts. Fieldwork is an important part of my paleontological research, and recent field areas include the Parnaíba Basin of Brazil, the Karoo Basin of South Africa, the Ruhuhu Basin of Tanzania, and the Luangwa Basin of Zambia. My collaborators and I have made important discoveries in the course of these field projects, including the first remains of dinocephalian synapsids from Tanzania and a dinosaur relative that implies that the two main lineages of archosaurs (one including crocodiles and their relatives and the other including birds and dinosaurs) were diversifying in the early Middle Triassic, only a few million years after the end-Permian extinction. Finally, the experience I have gained while studying Permian and Triassic terrestrial vertebrates forms the foundation for work I am now involved in using models of food webs to investigate how different kinds of biotic and abiotic perturbations could have caused extinctions in ancient communities.

Geometric morphometrics is the basis of most of my quantitative research on evolutionary morphology, and I have been using this technique to address several biological and paleontological questions. For example, I conducted a simulation-based study of how tectonic deformation influences our ability to extract biologically-relevant shape information from fossil specimens, and the effectiveness of different retrodeformation techniques. I also used the method to address taxonomic questions in biostratigraphically-important anomodont taxa, and I served as a co-advisor for a Ph.D. student at the University of Bristol who used geometric morphometrics and finite element analysis to examine the functional significance of skull shape variation in fossil and extant crocodiles. Focusing on more biological questions, I am currently working on a large geometric morphometric study of plastron shape in extant emydine turtles. To date, I have compiled a data set of over 1600 specimens belonging to nine species, and I am using these data to address causes of variation at both the intra- and interspecific level. Some of the main goals of the work are to examine whether plastron morphology reflects a phylogeographic signal identified using molecular data in Emys marmorata, whether the "miniaturized" turtles Glyptemys muhlenbergiiand Clemmys guttata have ontogenies that differ from those of their larger relatives, and how habitat preference, phylogeny, and shell kinesis affect shell morphology.

A collaborative project that began during my time as a postdoctoral researcher at the California Academy of Sciences involves using using models of trophic networks to examine how disturbances can spread through communities and cause extinctions. Our model is based on ecological principles, and some of the main data that we are using are a series of Permian and Triassic communities from the Karoo Basin of South Africa. Our research has already shown that the latest Permian Karoo community was susceptible to collapse brought on by primary producer disruption, and that the earliest Triassic Karoo community was very unstable. Presently we are investigating the mechanics that underlie this instability, and we're planning to investigate how the perturbation resistance of communities as changed over time. We've also experimented with ways to use the model to estimate the magnitude and type of disruptions needed to cause observed extinction levels during the end-Permian extinction event in the Karoo. Then there's the research project I've been working on almost my whole life.

Morphology and the stratigraphic occurrences of fossil organisms provide distinct, but complementary information about evolutionary history. Therefore, it is important to consider both sources of information when reconstructing the phylogenetic relationships of organisms with a fossil record, and I am interested how these data sources can be used together in this process. In my empirical work on anomodont phylogeny, I have consistently examined the fit of my morphology-based phylogenetic hypotheses to the fossil record because simulation studies suggest that phylogenies which fit the record well are more likely to be correct. More theoretically, I developed a character-based approach to measuring the fit of phylogenies to the fossil record. I also have shown that measurements of the fit of phylogenetic hypotheses to the fossil record can provide insight into when the direct inclusion of stratigraphic data in the tree reconstruction process results in more accurate hypotheses. Most recently, I co-advised two masters students at the University of Bristol who are examined how our ability to accurately reconstruct a clade's phylogeny changes over the course of the clade's history.
